K – Rain Spray Head Sprinkler Pro S

Known as the hardest-working spray in the irrigation business, Pro-S™ Sprays have the industry’s highest max pressure rating – up to 110 PSI. That’s because they are engineered to withstand and perform in high-pressure situations.

The result of precision engineering and extensive field testing by contractors around the world, the Pro-S™ is designed to provide long life and outstanding performance. Distinguished by their robust construction, co-molded wiper seal, and heavy-duty retraction spring, Pro-S™ pop-up sprays are built for reliability and durability.

SKU: GS-LI004 Category:


Like all K-Rain products, Pro-S Sprays work seamlessly with other brands.   The spray assembly fits right into the competitor’s 1800 Series spray body.  And Pro-S Sprays accept all standard female-threaded nozzles.


  • Co-Molded Wiper Seal – Ensures leak-free, full pop-up operation even under low-pressure situations. The cartridge design allows for easy removal and cleaning. Treated with UV inhibitors for long life. Seal material is carefully selected to reduce degradation and stick-ups
  • Ratcheting Riser – Permits quick, easy alignment of spray pattern
  • Heavy-Duty Retraction Spring – The strongest spring in the industry for positive retraction in all soil conditions
  • Accepts Female Threaded Nozzles
  • Side Inlet – Standard on 12″ model, optional with 6″ model
  • Pre-Installed Flush Cap
  • Optional In-stem Pressure Regulator – Available for 4″, 6″ and 12″ models, factory preset at 30 psi or 40 psi
  • Optional In-stem StopFlow™ – Available in 4″ & 6″ models only
  • Optional In-stem Check Valve – Factory installed or installed in the field, holds up to 10′ of head pressure
  • Optional Pre-installed Nozzle Guard
  • All pressure-regulated Pro-S™ Sprays are EPA WaterSense-certified

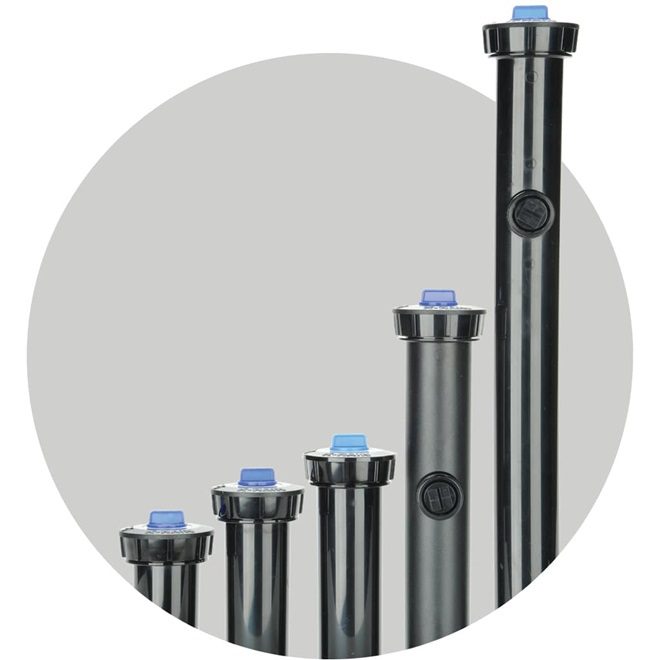

  • Wide Selection of Sizes – Available in 2″, 3″, 4″, 6″ and 12″ models


Technical Brochure
