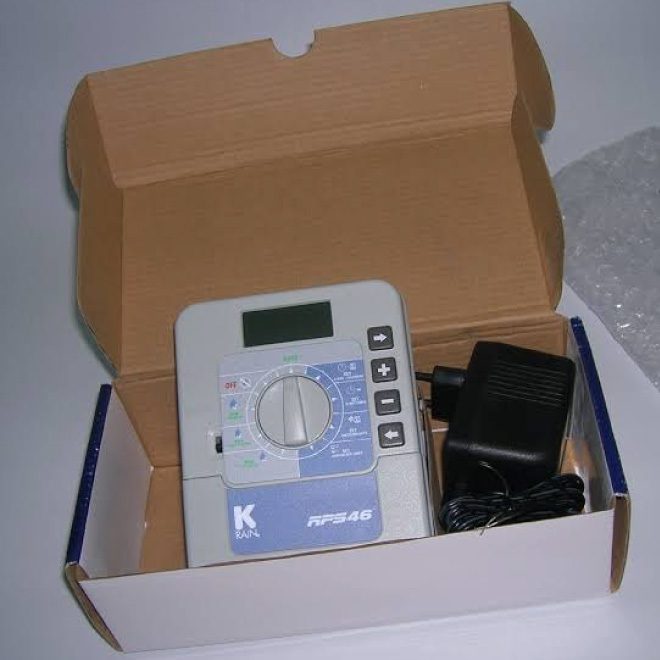

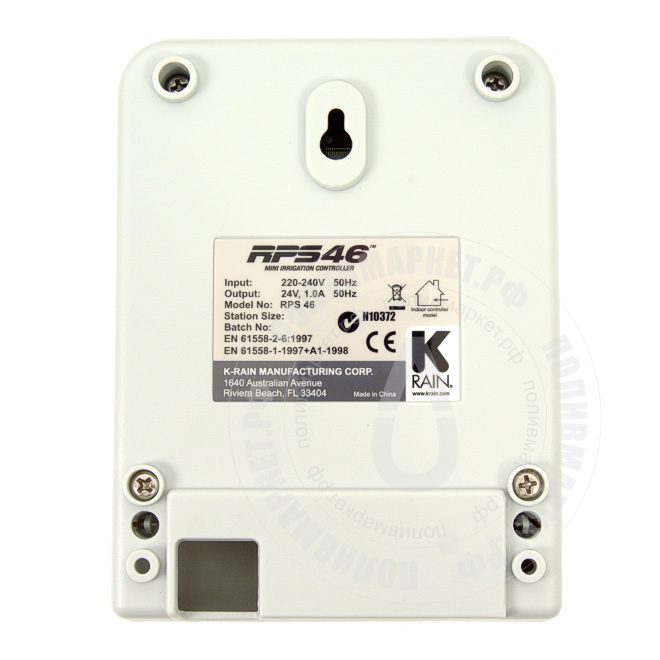

RPS 46 Digital Controller

The RPS™ 46 Mini Irrigation Controller, designed for residential applications, has four individual programs to allow for efficient watering on separate programs.

  • Easy 6 Station Models – Perfect for residential lawn
  • Battery Back-Up – Saves program during power outages
  • Indoor Models with External Transformer & Plug
SKU: GS-AI006 Category:

Description

  • Seasonal Adjustment – Allows for quick adjustment of watering durations in 10% increments from 10% to 200%
  • Rain sensor and rain/freeze sensor ready – Allows automated operation to be controlled by sensor
  • Flexible Manual Operation – Run a program, run a station or test system

Models

  • 3506-220
    6 Station
    220V Plug Pack Transformer

Operating Specifications

  • Station Run Times: 1 min. to 12 hrs. 59 min.
  • Number of Programs: 4
  • Number of Automatic Start Times: 4 per program
  • Program Watering Schedules: 7-day calendar with individual day selection, or 1-to-15-day interval, or 365-day calendar for ODD/EVEN day watering
  • Master Valve/pump start terminal
  • Automatic, semi-automatic, and single-station manual operation

Electrical Specifications

  • Power Input: 240V AC, 50/60Hz
  • Power Output: 24V AC, 1.0 AMP
  • To Solenoid Valve: 24V AC, 0.5 AMPS max
  • Overload protection: Standard 20mm 1.0 AMP fuse
  • Power Failure: 9 Volt standard alkaline battery maintains clock and program for up to 2 weeks
  • Wiring: The output circuits should be installed and protected in accordance with wiring rules
  • 4 Fully Independent Programs – Allowing up to 4 starts per program. Maximum 16 starts per day

Dimension

  • Height: 5 3/4″ (14,5 cm)
  • Width: 4 1/2″ (11,43 cm)
  • Depth: 1 3/4″ (4,3 cm)
